TRANSPORT SYSTEMS

FUJIFILM Unigraphica AG offers two different types of high-speed media transport systems, called TransJet R and STS Series, for use in conjunction with the company’s portfolio of inkjet printbar systems for applications where an off-line media transport is needed. The resulting combination of transport and printing system can be retrofitted to an existing analogue production line or be a hybrid of an existing asset with new digital printing capabilities. TransJet transport systems can be configured for reel to reel, reel to sheet, sheet to sheet, or reel to fanfold operation without significant modification. Configurations are scalable and modular, and can support monochrome and colour, simplex and duplex digital printing with options such as pre-treatment, curing, drying, and quality inspection. Support is also provided for finishing operations such as perforation, plow folding, punching, varnishing and systems can support up to 10 colours including specialty inks. Equipped with Fujifilm digital printbar systems, TransJet systems are capable of printing on paper, carton board, film, and metal. The reel-to-reel version has a productivity up to 300 m/min, and the sheet-to-sheet version up to 200 m/min.

Benefits include

• Flexibility for a wide variety of applications and site conditions

• Compact design

• Consistent and reliable susbtrate/media handling

• Simple user interface

• Various programmable options

• Piece tracking

TransJet systems are also designed to work in coordination with finishing functions, including:

• Inserting

• Cutting

• Binding

• Book-on-Demand

• and many more…

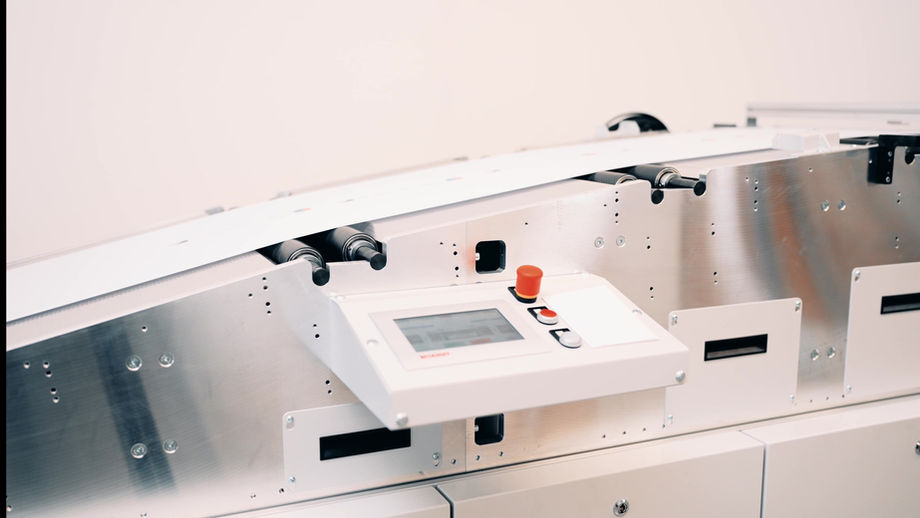

TransJet R Series - reel-to-reel transport systems

The TransJet R reel-to-reel high speed transport system is a precise and application independent solution for digital printing. It enables easy integration of upstream or downstream processes such as unwinders, rewinders, or cutting lines over existing controllers.

1/1

Key features

• Application independent precision transport system
• Computer controlled servo motors can be operated by touch pad
• Easy integration of upstream or downstream systems
• TransJet transport system can be operated with a single, consolidated user interface
• Individual adjustable web tension enables processing of thin and thick substrates

(up to 300g/m2)

Key specifications TransJet R S/D 300-520/1040

Type Reel transport system

Front/backside print Simplex and Duplex

Web width max. 520 mm and 1040mm

Web width min. 20 mm

System speed up to 300 m/min*

System prepared to accomodate Inkjet system, Dryer, Camera, Splice detection, Flexo printing unit, Plasma, corona treatment and other aggregates on demand

*capabilities may vary depending on application and substrate

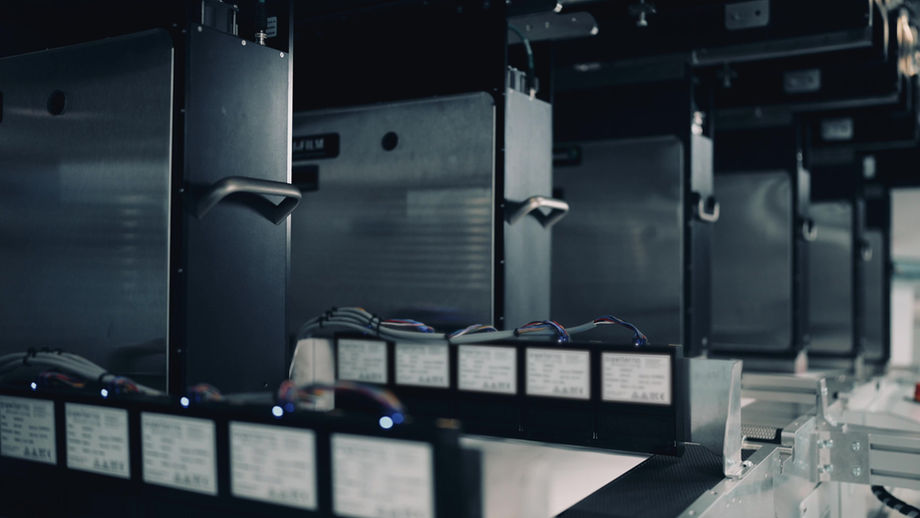

TransJet STS Series - sheet-to-sheet transport systems

The TransJet STS sheet-to-sheet high speed transport system is designed for digital printing, sheet separation, inspection, sorting and stacking. It accommodates easy integration of process-related functionalities such as inkjet system, camera supervision, laser microperforation, and other aggregates on demand.

1/1

Key features

The TransJet STS transport system consists primarily of the following modules, and is an interface to standard finishing systems:

• Flat pile feeder

• Round table feeder

• Vacuum-belt-table

• Reject gate

• Delivery conveyor or stacker

Key specifications Transjet STS S/D 200-520/1040

Type Transport System

Front/backside print Simplex and Duplex

Web width max. 500 mm and 1000 mm

System speed up to 200 m/min*

Substrate thickness 0.07-0.5 mm (standard system) **

System prepared to accomodate Inkjet system, Camera, Laser microperforation
Other aggregates on demand

* Capabilities may vary depending on application and substrate

** thicker substrates such as corrugated materialand metal plates are also possible to process, depending on the application)
